Workmaster plate for Kubota BX series (Pin on Bucket) Year 2000-current
SKU: BXPINON
$239.0.00 Bolt On, Powder coated with predrilled holes, all grade 8 hardware included. Installation time: 25-30min
Designed for:
All Kubota BX models, year 2000-current with “Pin on” 48” bucket ONLY! If you have a quick attach 48” bucket this will NOT work, please refer to SKU # BXQA
Also Fits: B7300,B7400,B7410,B7500,B7510, B7600, B7610, B1550, B1700, B2400, B2410, B2910 with the 52” pin on bucket.
B1616 Pin on Bucket
B1617 Pin on Bucket (60” bucket)
M1047 Pin on Bucket bucket (72” bucket)
Commonly found on tractor models:
BX 1800, BX 1830, BX 1850, BX 1860, BX 1870
BX 2200, BX2230 BX 2350, BX 2360, BX 2370 BX2380
BX 2660, BX2670, BX2680
BX23, BX24, BX25, BX25D
Features:
22” L x 6” W x 1/4” thick steel plate formed on the front leading edge for increased strength
(2) 5/16” Forged in USA grab hooks (G70) rated at 4700lbs WLL (Accepts 3/8” chain and under)
(2) 5/8” Tow/Grab Handles (5000lb WLL)
(1) 2” receiver with 5/8” center hole
Laser cut, All one piece CNC formed, Mig welded construction
Full Industrial Grade E-Coat and Powder coat
All grade 8 hardware included
Instructions for mounting

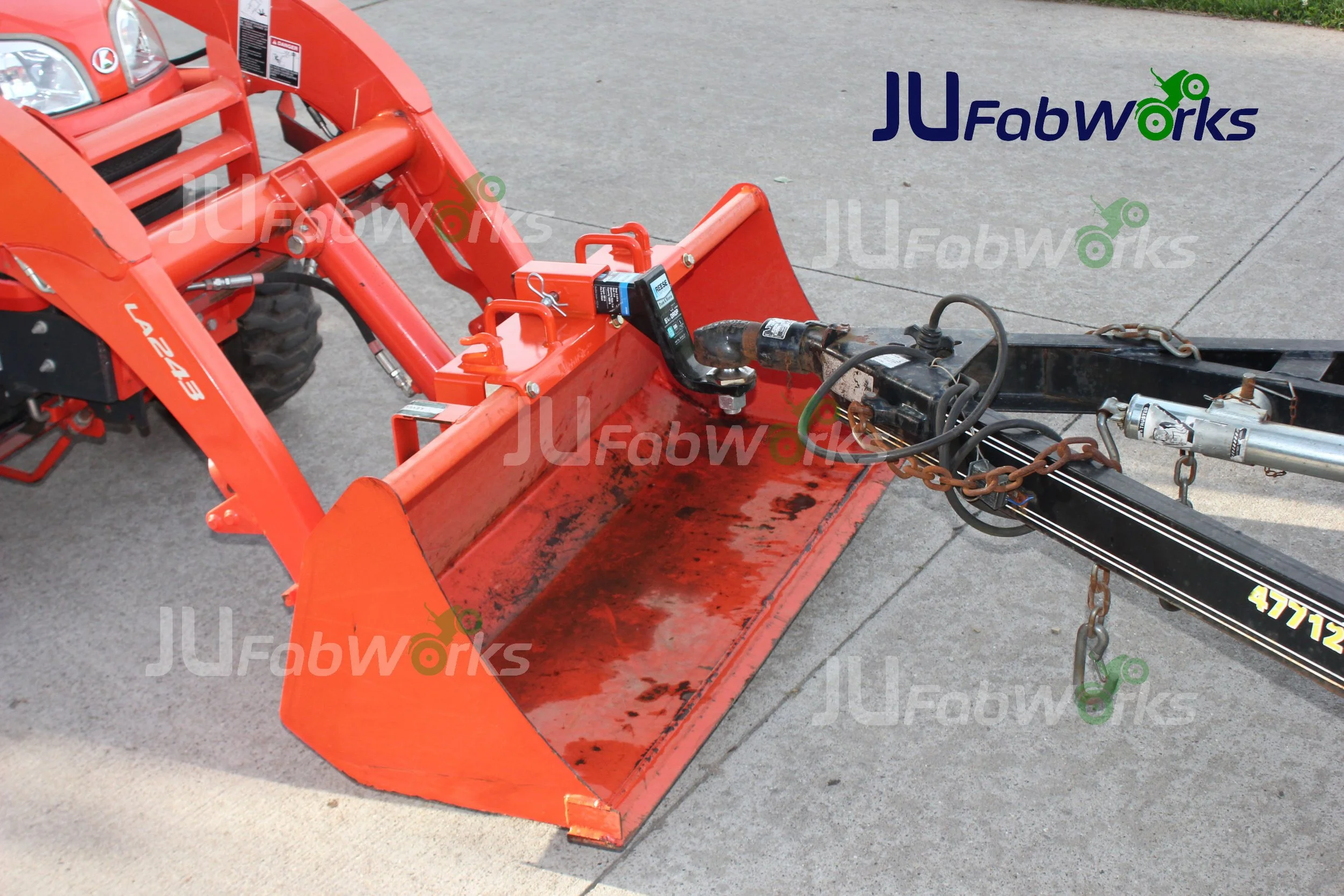

The Workmaster Plate is the perfect addition to your tractor for the hobby farm enthusiast, from moving around small trailers to lifting awkward materials and pulling those unwanted shrubs out to safely securing your tractor during transport, you will always find a job for the workmaster plate!
