SKU: TMTG
$169.00
Sold as a SET ONLY

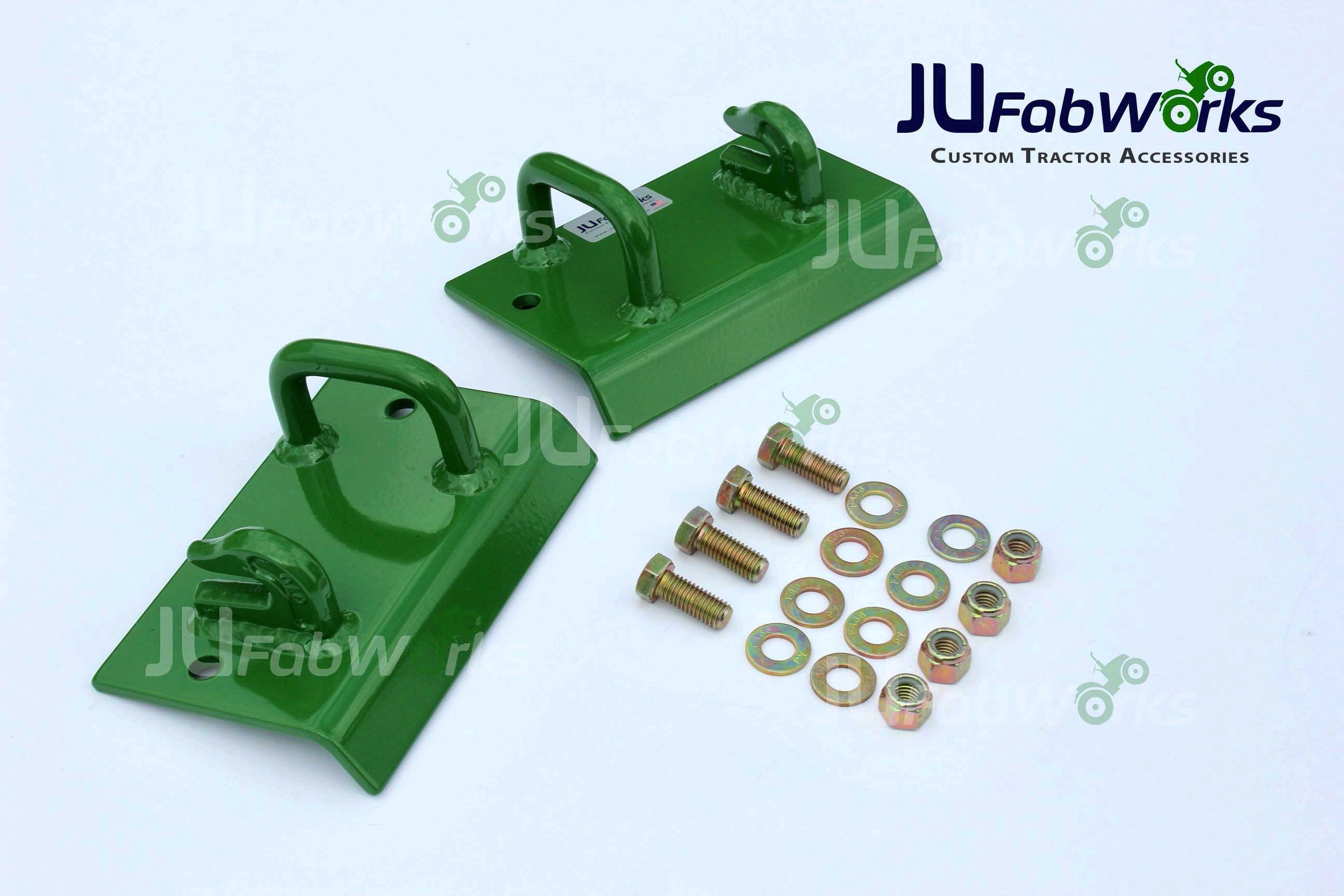

All hardware Included (1/2" Grade 8 Bolts, Lock Nuts, Washers)
Instructions for Mounting
Industrial grade e coating and powder coat to a perfect color match
8” L x 4.5” deep, 1/4” thick steel plate foundation with formed front leading edge for increased strength

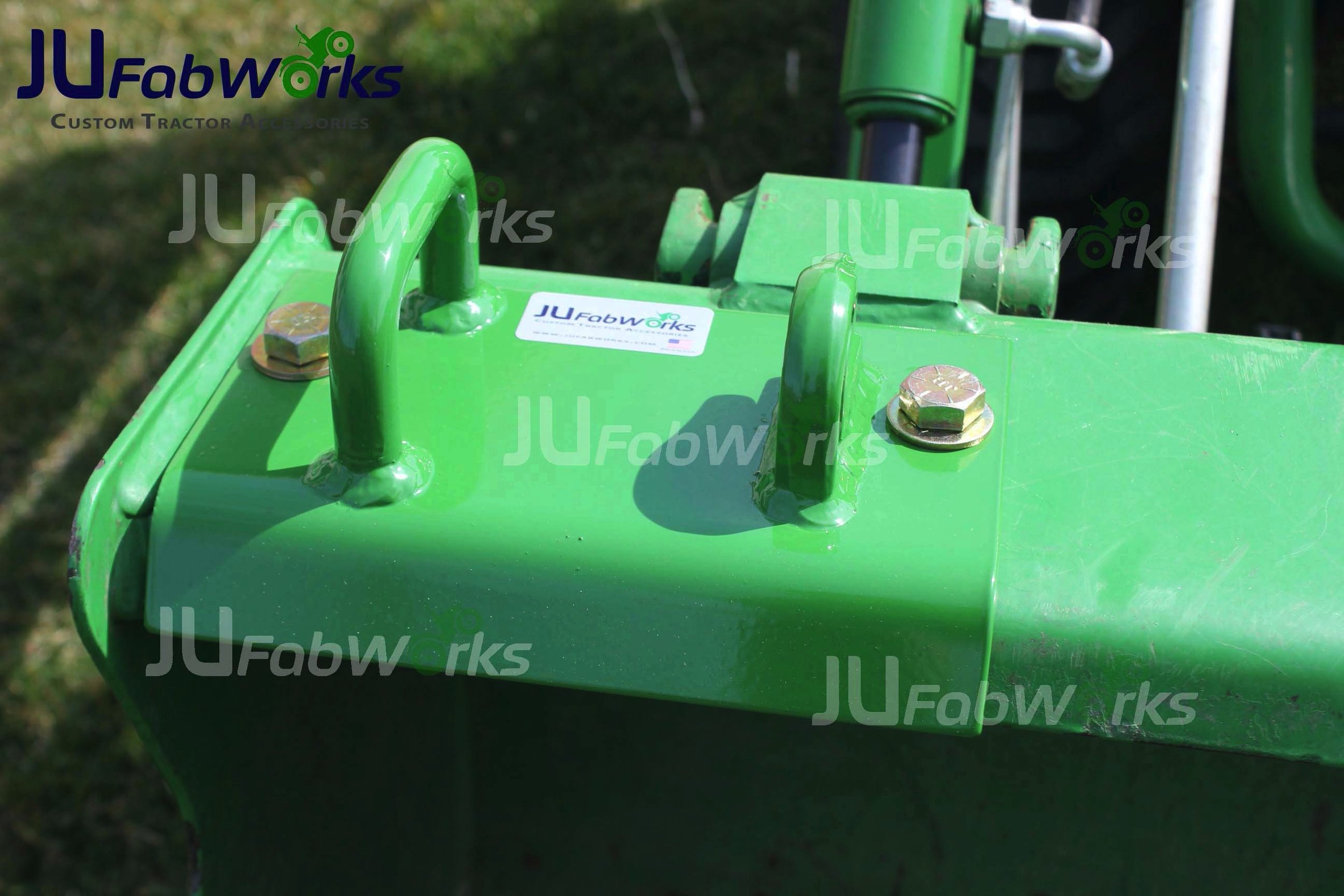

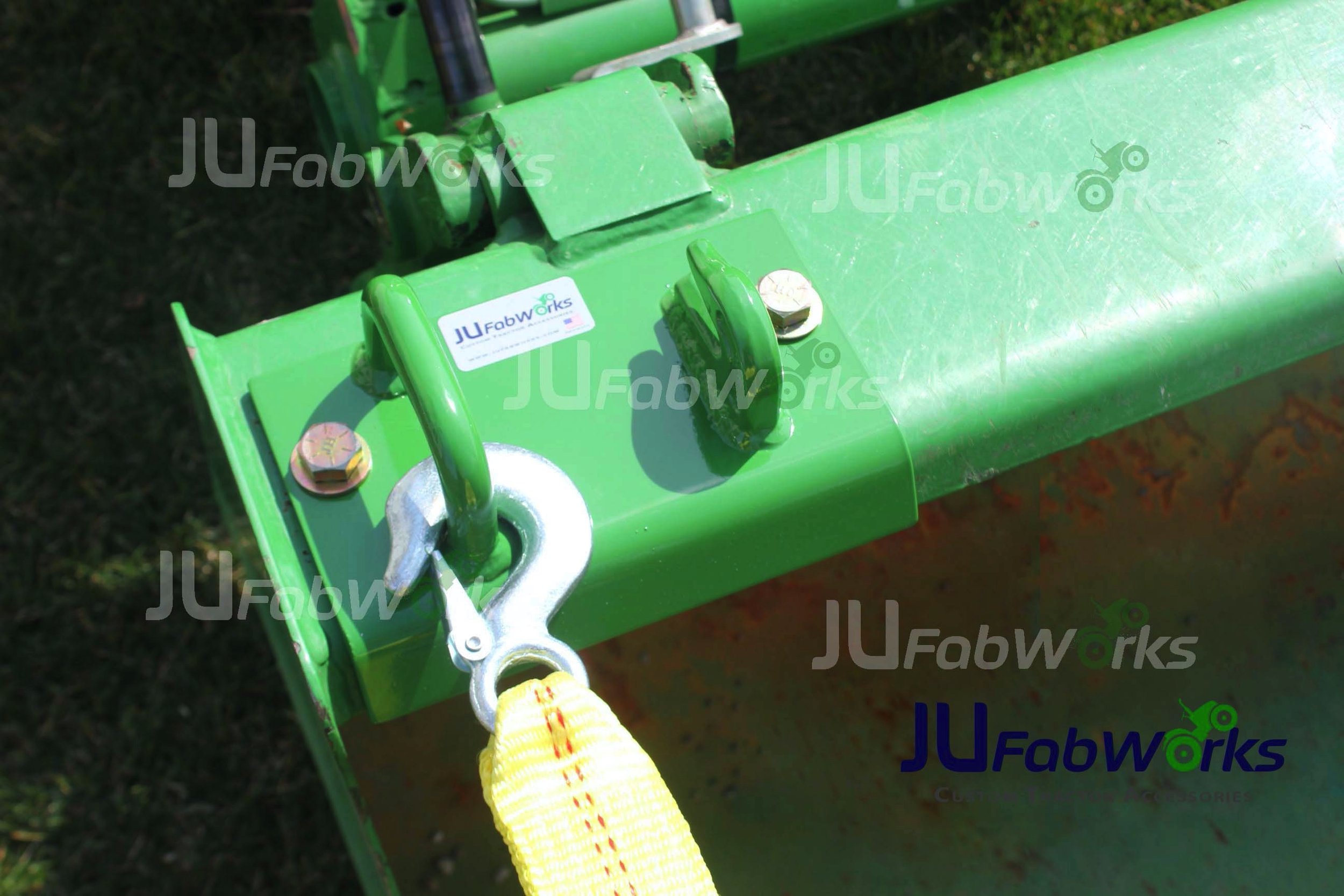

(2) 5/16” forged grab hooks (G70) rated at 4700lbs WLL (Accepts 3/8” chain and under)
(2) 5/8” Tow/Grab Handles (5000lb WLL)
Mig welded construction

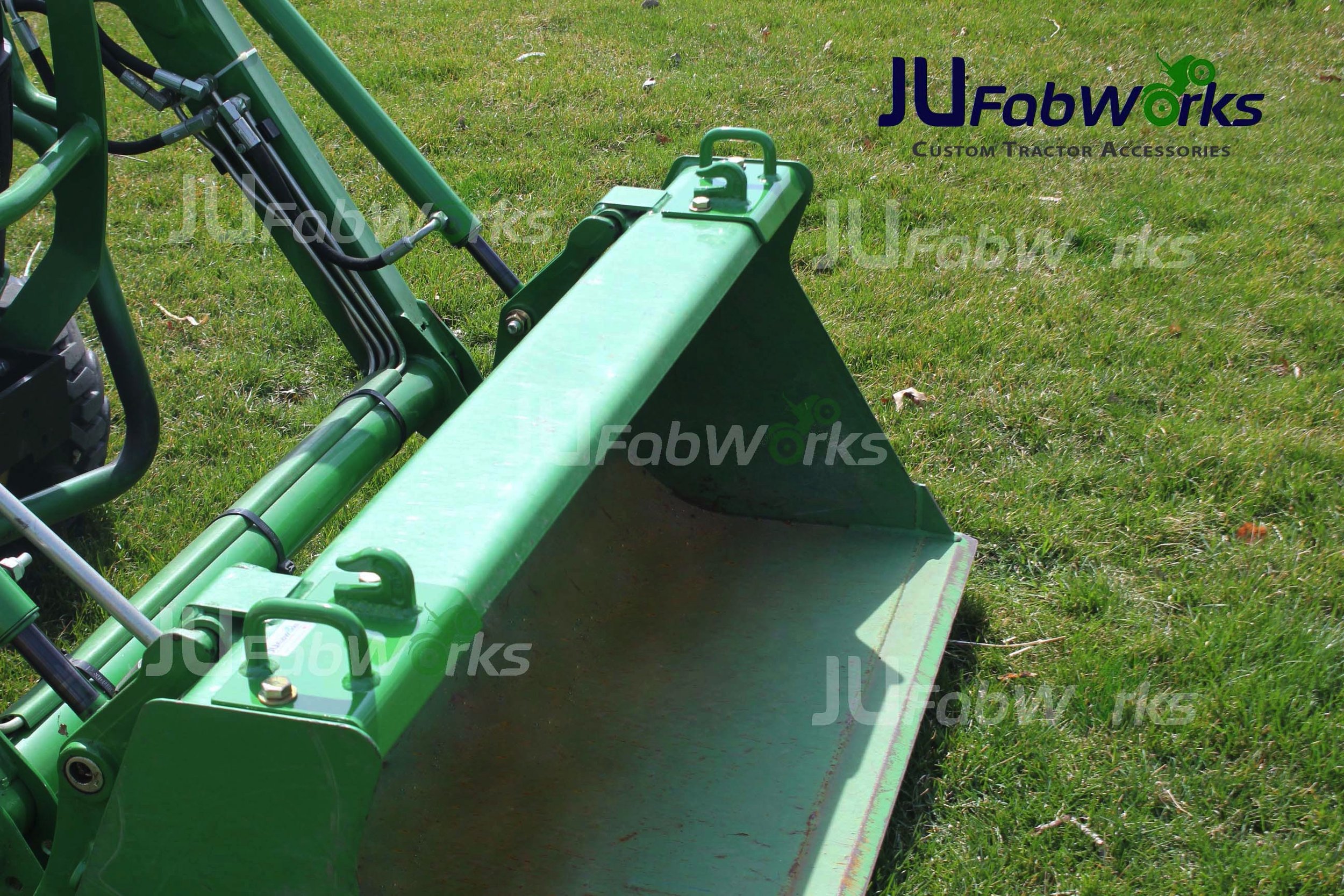

Designed for John Deere sub compact and compact tractor buckets and will fit all size buckets Including
53” Materials Bucket
57" Heavy Duty Bucket.
61" Materials Bucket.
61" Heavy Duty Bucket.
73" Materials Bucket. BW14147 or BW16183 or BW14658
73" Heavy Duty Bucket BW14765, BW16358, BW17029
Will NOT work on the 49” bucket (Measures 49 3/4” outside to outside) Our Workmaster universal will work on the 49” bucket
Will NOT work on the BW15273 85” High Volume Bucket
For Tractor Models:
1 series 1025r, 1026r, 1023e 2210, 2305
2 series 2320, 2520, 2720, 2025r, 2032r, 2038r, 4100, 4010, 4110, 4115, 790, 990, 3005, 4005, 4105
3 series 3120, 3320, 3520, 3720, 3033r, 3039r, 3046r, 3025e, 3032e, 3038e, 3025D, 3035D, 3043D 3203
4 series 4200, 4300, 4400, 4500, 4600, 4700, 4210, 4310, 4410, 4610, 4710, 4120, 4320, 4520, 4720, 4044R, 4052R, 4066R, 4044M, 4052M, 4066M
5 series: 5045E, 5045D, 5055E, 5065E, 5075E, 5075M, 5085E 5085E, 5085M, 5083E, 5090E. (Select HD bucket (5 Series ONLY) as 3” bolts are required for installation on these buckets)
Attention: This model will NOT work on 5 series tractors with the global connection buckets which have a 90 degree bend on top leading edge of the bucket. Will work on all 5 series tractors that do NOT have the global connection buckets. (Standard John Deere hook and pin)
Attention:
When ordering there are 3 Variations. Please make sure to choose the correct one for correct bolt length.
1.25” Bolts (Standard Duty Bucket) Fits 53",57", 57"HD,61" and 73" buckets. Comes with 1.25" BOLTS
Note: The standard duty bucket has single wall construction on top of bucket and uses the 1.25” bolts.
2.5” bolts, (Heavy Duty Bucket) Fits 61"HD and 73"HD buckets only. Comes with 2.5" bolts due to the double walled boxed construction on top of the bucket.
3” bolts (5 series tractors only) These buckets require 3” bolts

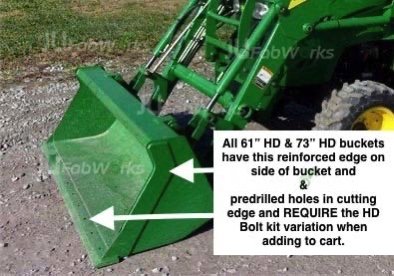

Please refer to the Picture of the Heavy Duty Bucket above to verify correct ordering.

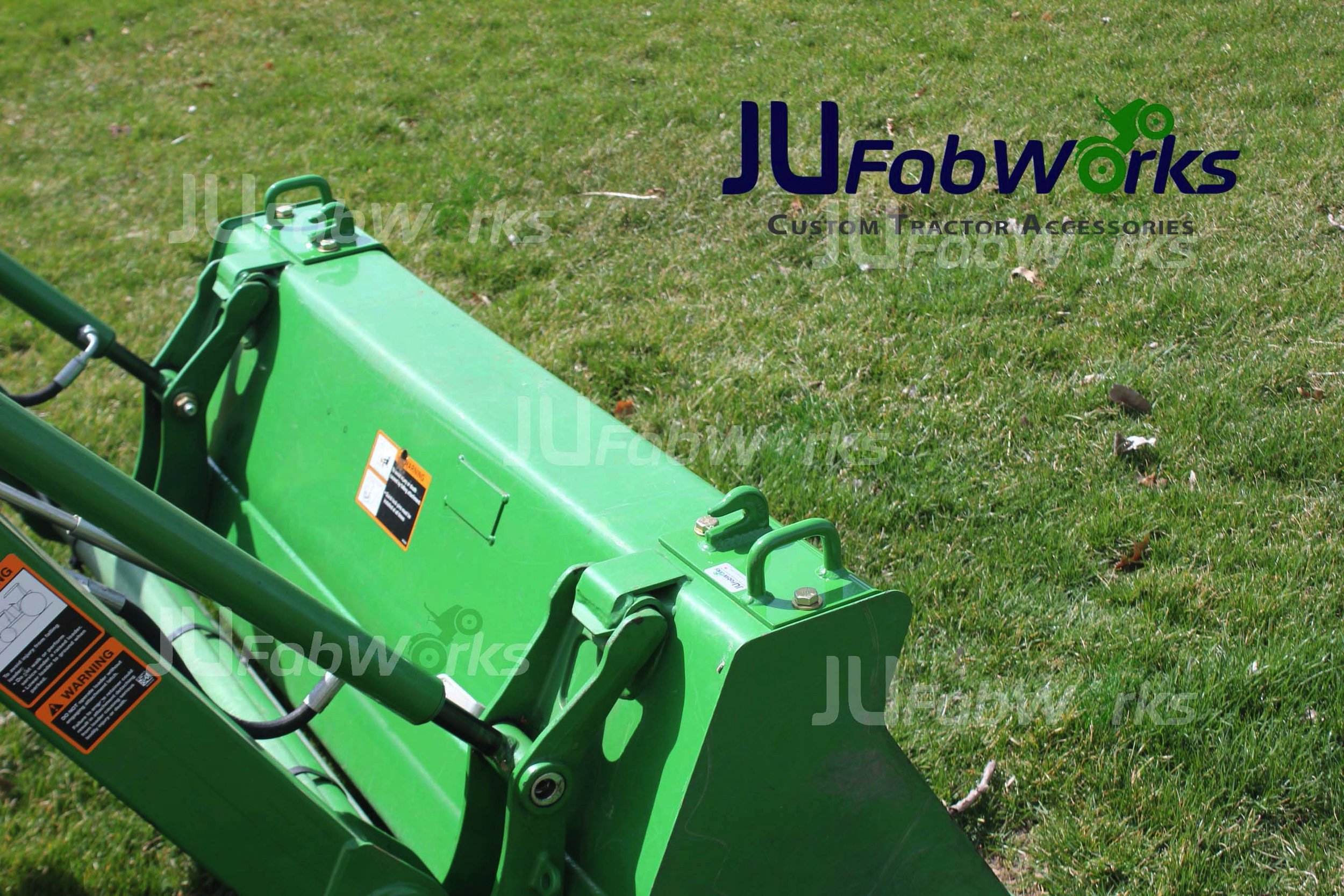

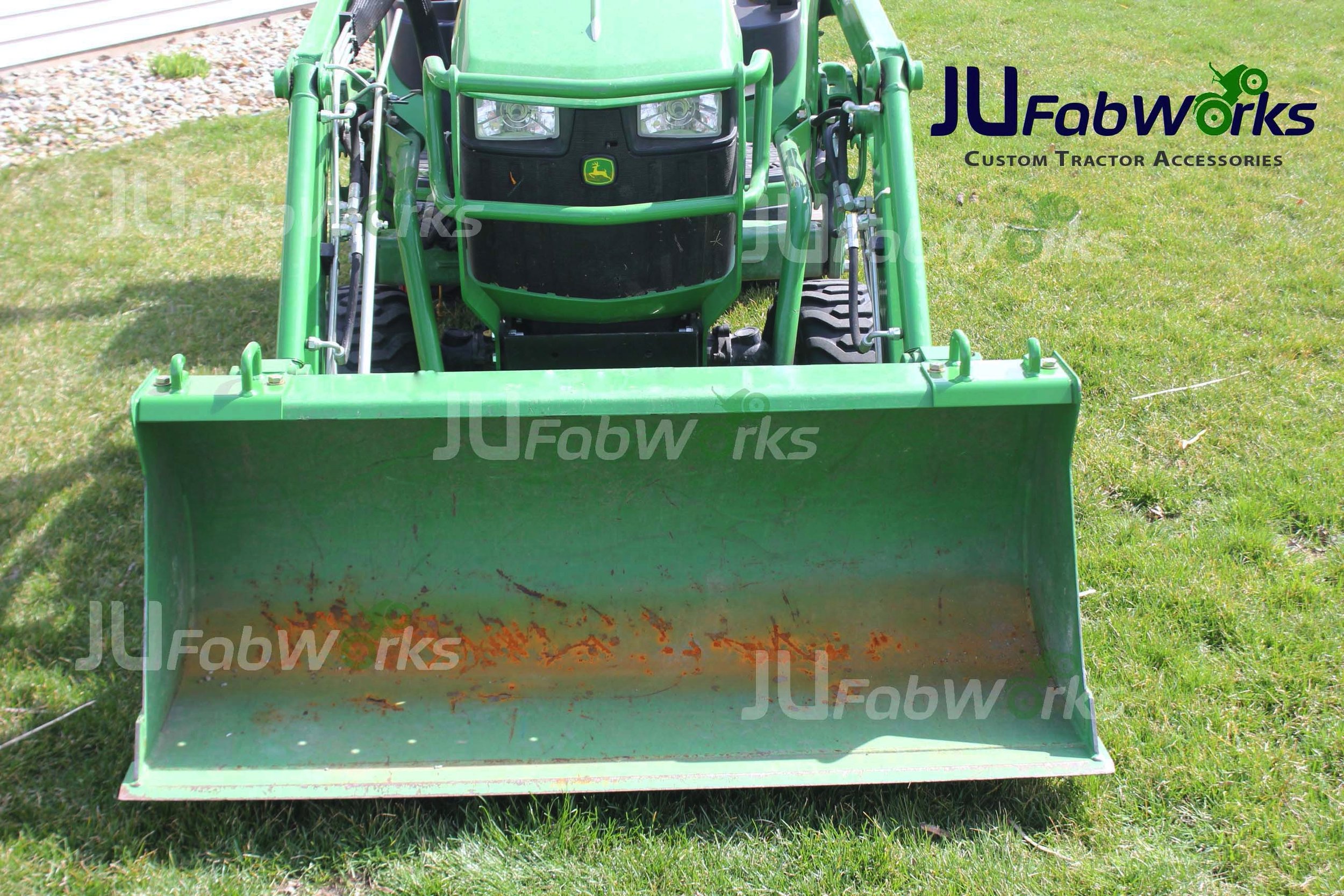

NOTE: The heavy duty buckets are only available from John Deere in 61" and 73" and are most commonly found on the 3,4 and 5 series John Deere tractors. All 1 & 2 series tractors come standard with the standard duty bucket. The 1025r in the pictures has the standard duty bucket.Specifically Designed for Your Tractor Bucket!
