$119.00
SKU# CK2610TDF

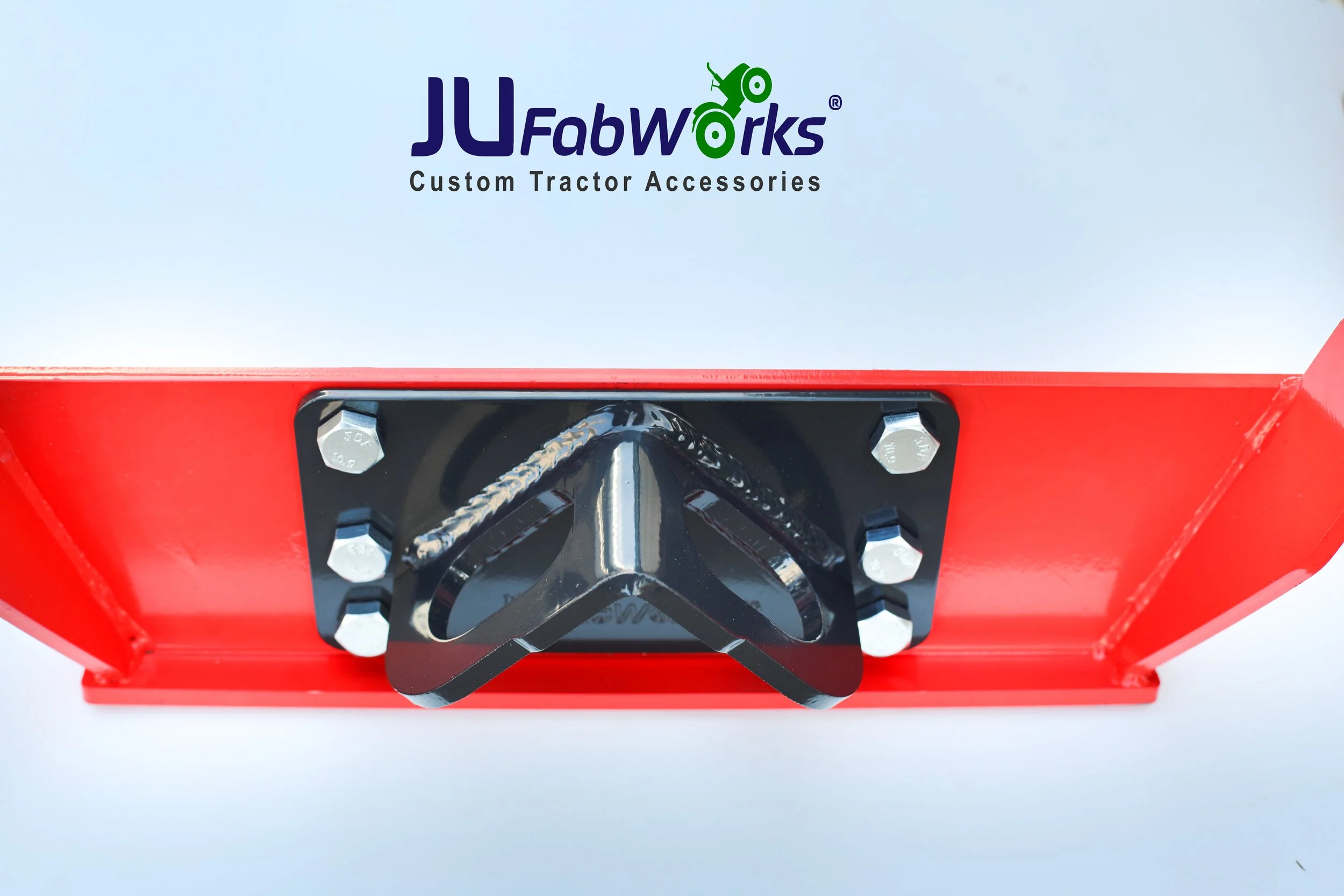

Front Tie down point bracket
Installs in combination with your factory brush guard by using the same mounting holes as your brush guard! Longer and stronger grade 10.9 bolts are included. Please note, some Kioti models use 4 bolts instead of 6. We include 6 bolts, if you only have 4 mounting holes, just use 4 bolts for the installation. Note: No nuts are required as the factory holes in the front frame are threaded from the factory.
Click HERE for Installation Video.
Be safe & confident when towing your expensive investment!
NO DRILLING REQUIRED! Utilizes the factory holes in the frame
Extra large 2.5” openings, perfect for using straps or chains.
A36 USA steel
CNC Laser cut
CNC formed
1/4” thick mounting plate with 3/8” thick tie down bracket fully welded to mounting plate
Industrial grade powder coated Charcoal Grey
Longer and stronger than stock Grade 10.9 Metric (M14) bolts included for installation.
Made in USA!
NOTE! If you have an aftermarket grille guard or plan on purchasing one you will need to use the optional spacer plate that is sold separately. The spacer plate will allow you to use an aftermarket grille guard in conjunction with the front tie down bracket. The spacer plate gets installed sandwiched between the tie down bracket and the frame of your tractor using the bottom 4 holes in the tie down bracket. The top 2 holes are then used for your aftermarket grille guard.
Fits: Kioti
CK 2610, CK 2620 CK3510, CK 3520, CK 4010, CK 4020
DK 4210, DK 4220, DK 4510, DK 4520, DK 4710, DK 4720, DK 5010, DK 5020, DK 5310, DK 5320, DK 5510, DK 5520, DK 6010, DK 6020
NS 4710, NS 5310, NS 6010
NX 4510, NX 5010, NX 5510, NX 6010
