Choremaster Plate
SKU: CM
1/2” Drill bit required (Sold separately)
The more you buy the more you save!
Price is $89.00 for 1 Choremaster plate
$169.00 for 2 Choremaster plates (save $9.00)
$249.00 for 3 Choremaster plates. (save $18.00)

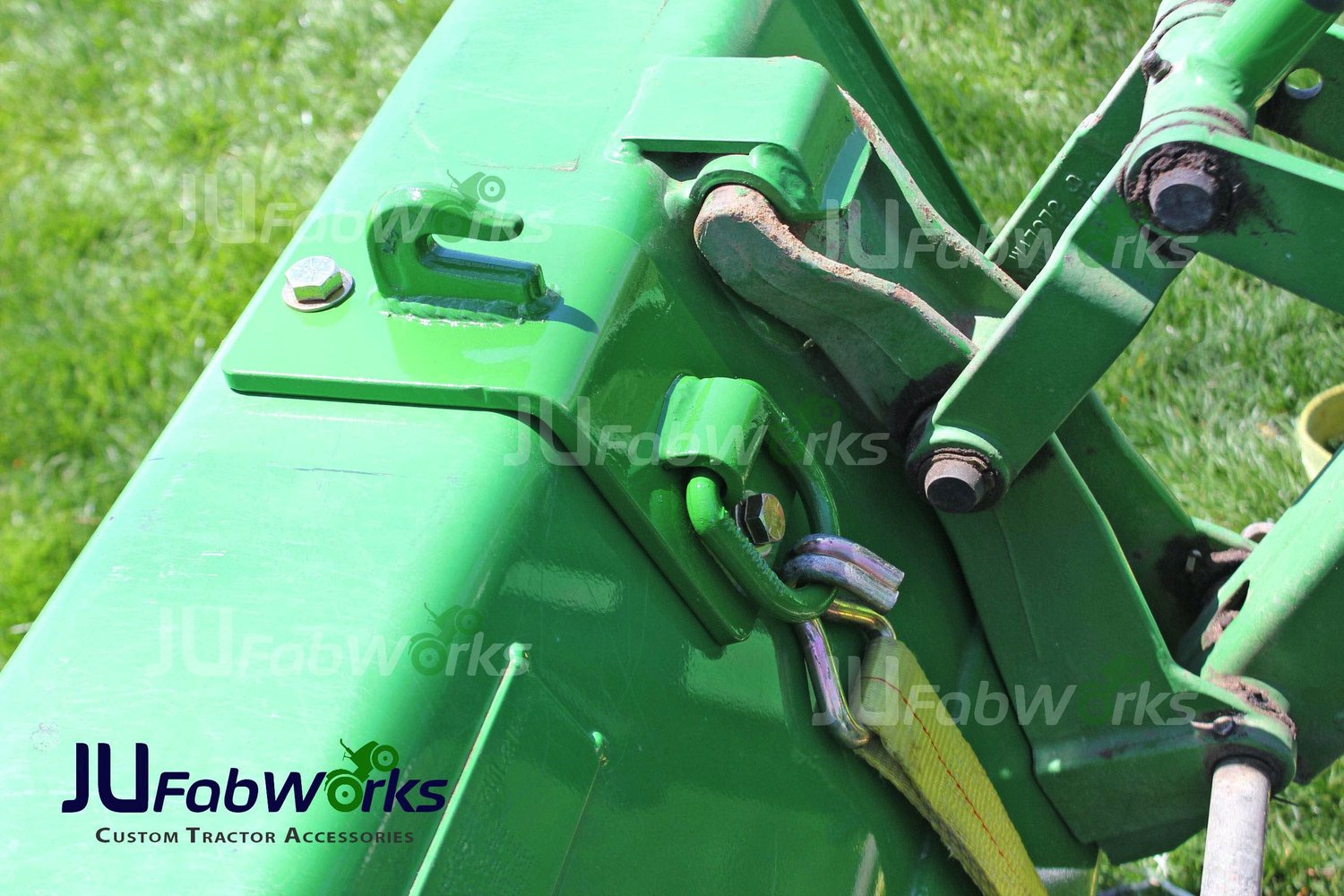

A 1/4" steel plate foundation and a mounting design on both top and backside of the bucket gives unparalleled strength where it is needed the most. Furthermore, these plates are completely reversible in less than 2 minutes with simple hand tools. You choose the way you want them to work for you!
Whats Included:
(1) Choremaster plate featuring 1/4" thick Steel plate formed for increased strength with (1) 5/16" forged Grab Hook and (G70) rated at 4700lbs WLL (Working Load Limit). (Will except 3/8" chain and under) and (1) 1/2" forged D ring rated at 4000 lb WLL (Working Load Limit)
All Welded Construction
All hardware Included (1/2" Grade 8 Bolts, Lock Nuts, Washers)
Instructions for Mounting
Note: All bolt on plates come fully E coated & powder coated and include all grade 8 attaching hardware.
On 2013 and newer John Deere tractors, you can locate the model number of your bucket on the backside of bucket on a metal tag, the model number is scribed onto the tag.
Designed for John Deere sub compact and compact tractor buckets and will fit all size buckets Including
53" Materials Bucket BW14145 or BXX10052
57” Materials Bucket BW16609
57" Heavy Duty Bucket. BW16787
61" Materials Bucket. BW15863 or BW14146
61" Heavy Duty Bucket. BW14764
73" Materials Bucket. BW14147 or BW16183 or BW14658
73" Heavy Duty Bucket BW14765 or BW16358
Will NOT work on the the 49” bucket, BW14144 and the 53” low volume bucket BXX10368.
Will NOT work on the 49” Pin on bucket BW15896
For Tractor Models:
Sub Compact tractors (1 series) 1025r, 1026r, 1023e 2210, 2305
Compact tractors (2 series) 2320, 2520, 2720, 2025r, 2032r, 2038r, 4100, 4010, 4110, 4115, 790, 990, 3005, 4005, 4105
Compact tractors (3 series) 3120, 3320, 3520, 3720, 3033r, 3039r, 3046r, 3025e, 3032e, 3038e, 3025D, 3035D, 3043D
Compact tractors (4 series) 4200, 4300, 4400, 4500, 4600, 4700, 4210, 4310, 4410, 4610, 4710, 4120, 4320, 4520, 4720, 4044R, 4052R, 4066R, 4044M, 4052M, 4066M
Additional models: 3203, 5103, 5203, 5303, 5403, 5603
Attention:
When ordering plates there are 6 Variations, Please make sure to choose the correct one for correct bolt length.
(Standard Duty Bucket) Fits 49",53",57", 57"HD,61" and 72" buckets.
(Heavy Duty Bucket) Fits 61"HD and 72"HD buckets only. due to the boxed construction of top of the bucket.
Please refer to the picture of the Heavy Duty Bucket to verify correct ordering.
NOTE: The heavy duty buckets are only availble from John Deere in 61" and 72" and are most commonly found on the 3000 and 4000 series John Deere tractors. Almost all 1000 series and 2000 series tractors come standard with the standard duty bucket.
Proudly made in the U.S.A.
Select Variation, Add to cart, then click on your “cart” on top right corner of page to proceed to checkout.
